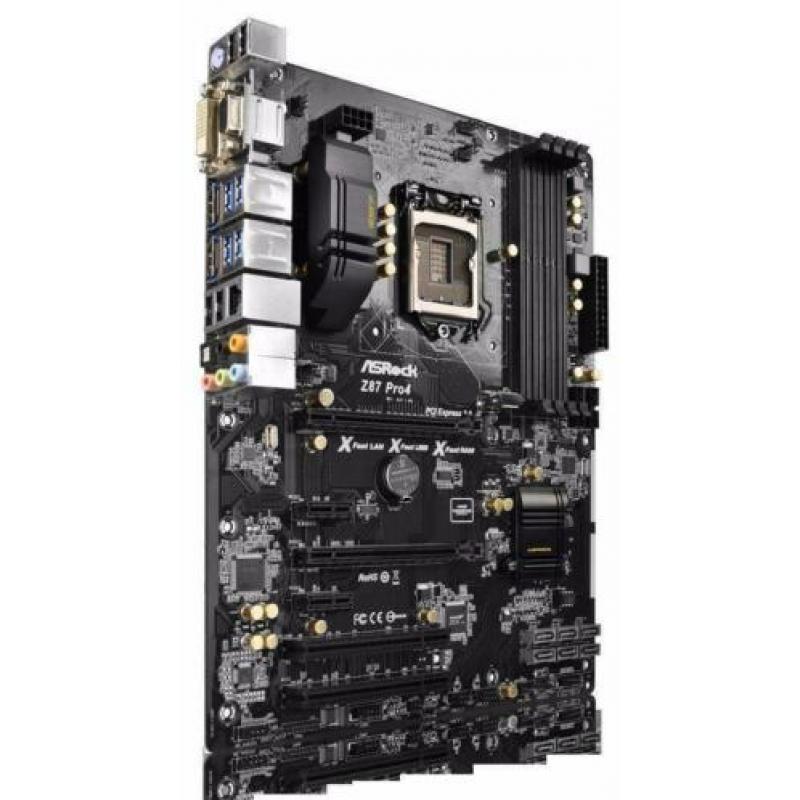

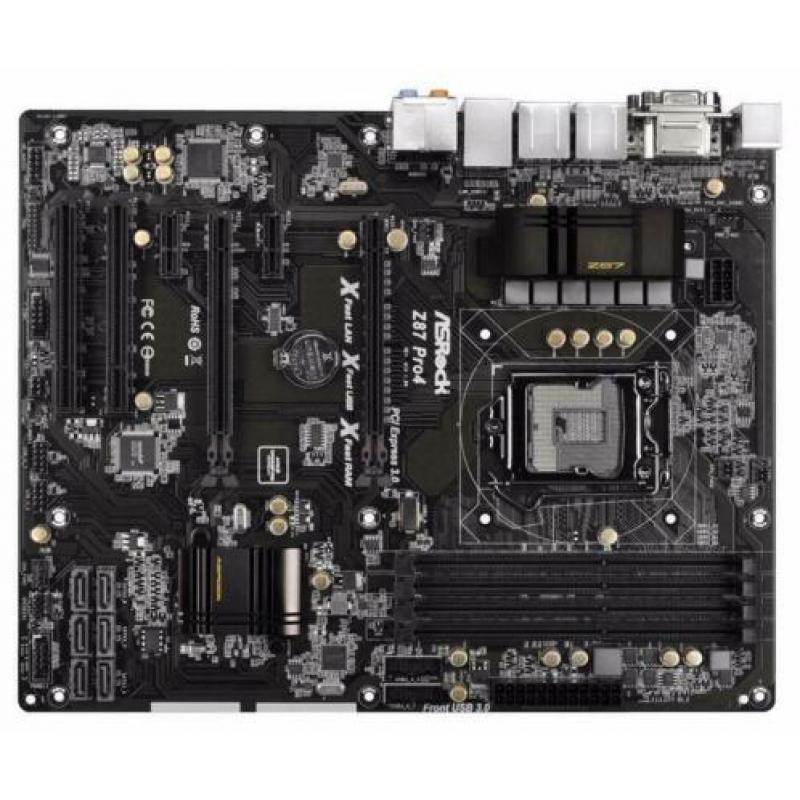

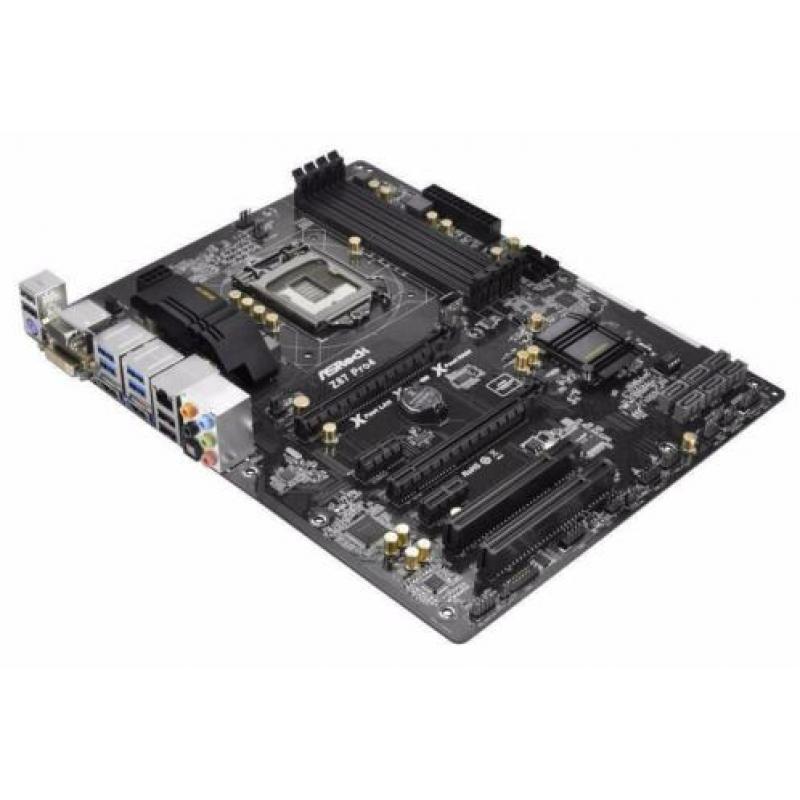

ASRock Z87 PRO4 | 4x DDR3 | ATX | LGA 1150 | Laatste BIOS ve

---

Eigenschappen: Moederbord – ATX – Socket 1150 – 4x DDR3 – Intel H87 – VGA – DVI – 2x HDMI – USB3.0 – USB2.0 – 2x PCI – 2x PCI-e 2.0 x1 – PCI-e 2.0 x16 – PCI-e 3.0 x16 – AMD Crossfire

Dit socket 1150 ATX moederbord is gecontroleerd en voorzien van de laatste BIOS versie.
De prijs is inclusief garantie, een BTW Factuur is ook mogelijk, de prijs is dan inclusief BTW.

Product: ASRock H87 Pro4
Categorie: Moederborden
Merk: ASRock
EAN: 4717677321197
SKU: 90-MXGPP0-A0UAYZ, Z87 PRO4, Z87PRO4

Opmerking: dit is een refurbished moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 90 dagen.

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

A-Style : Home Cloud, HDMI-In
Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
Premium Gold Capacitor Design, Digi Power, 6 Power Phase design
Supports Dual Channel DDR3/DDR3L 2933+(OC)
1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1
Supports AMD Quad CrossFireX™ and CrossFireX™

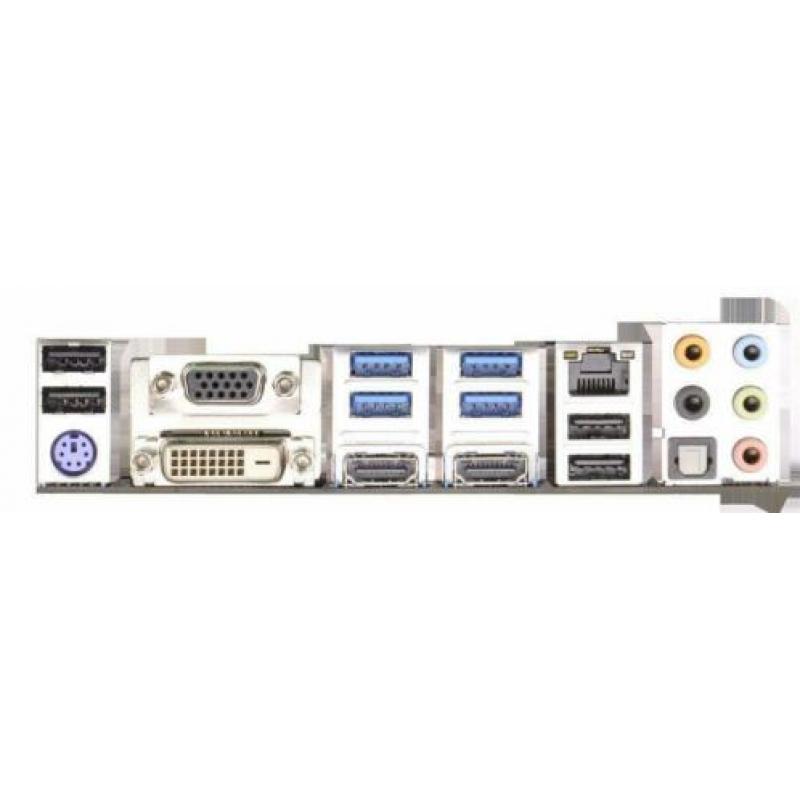

Graphics Output Options : DVI-D, D-Sub, HDMI
Intel® Gigabit LAN
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
6 SATA3, 9 USB 3.1 Gen1, 8 USB 2.0
Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
A-Style
– Home Cloud
– HDMI-In

CPU
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power Design
– 6 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPU
– Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z87

Memory
– Dual Channel DDR3/DDR3L memory technology
– 4 x DDR3/DDR3L DIMM slots
– Supports DDR3/DDR3L 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2


Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS
– 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB*
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI Technology with max. resolution up to 1920×1200 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
– Supports HDCP function with DVI-D and HDMI ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports


The size of maximum shared memory may vary from different operating systems.
